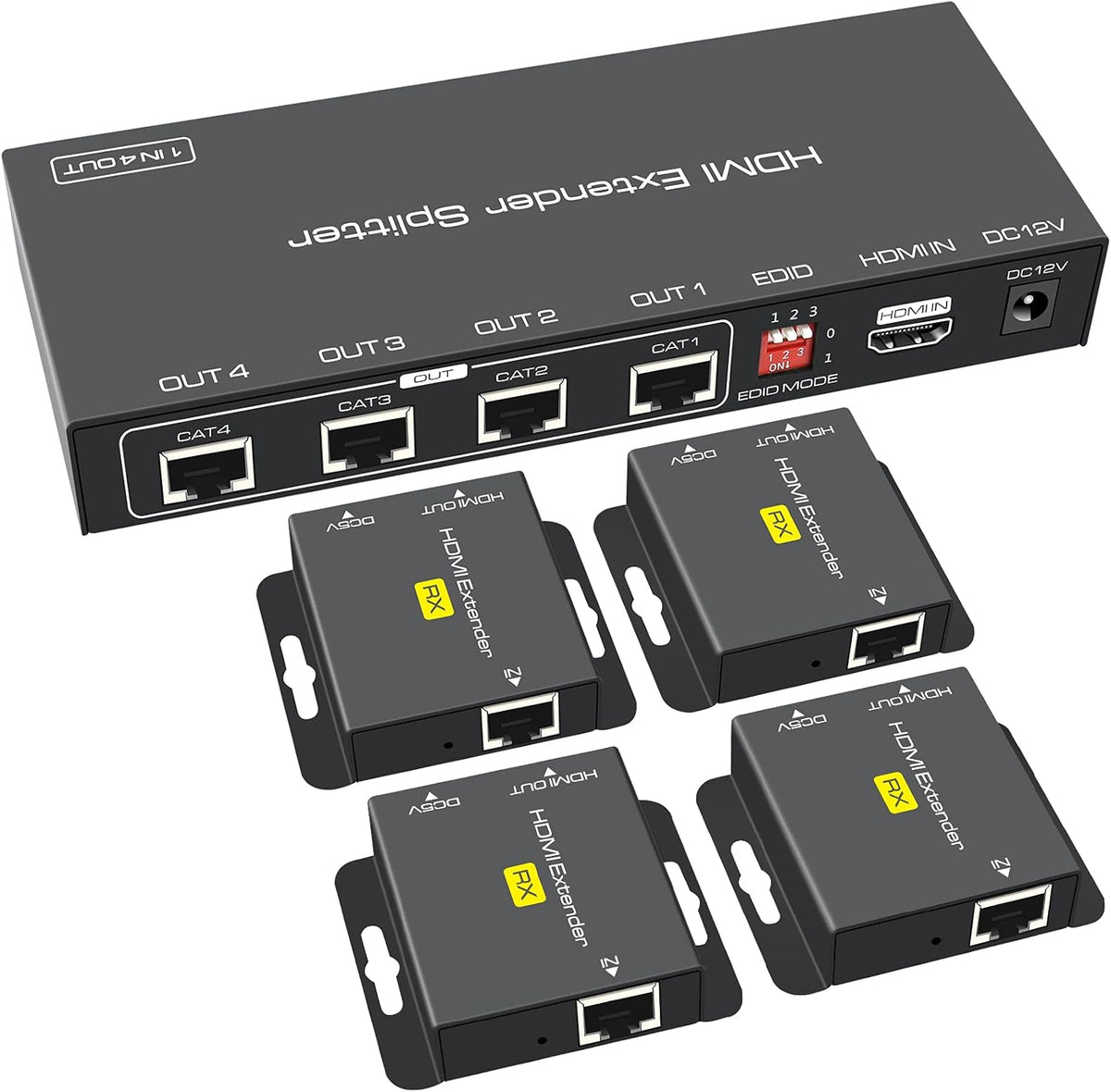

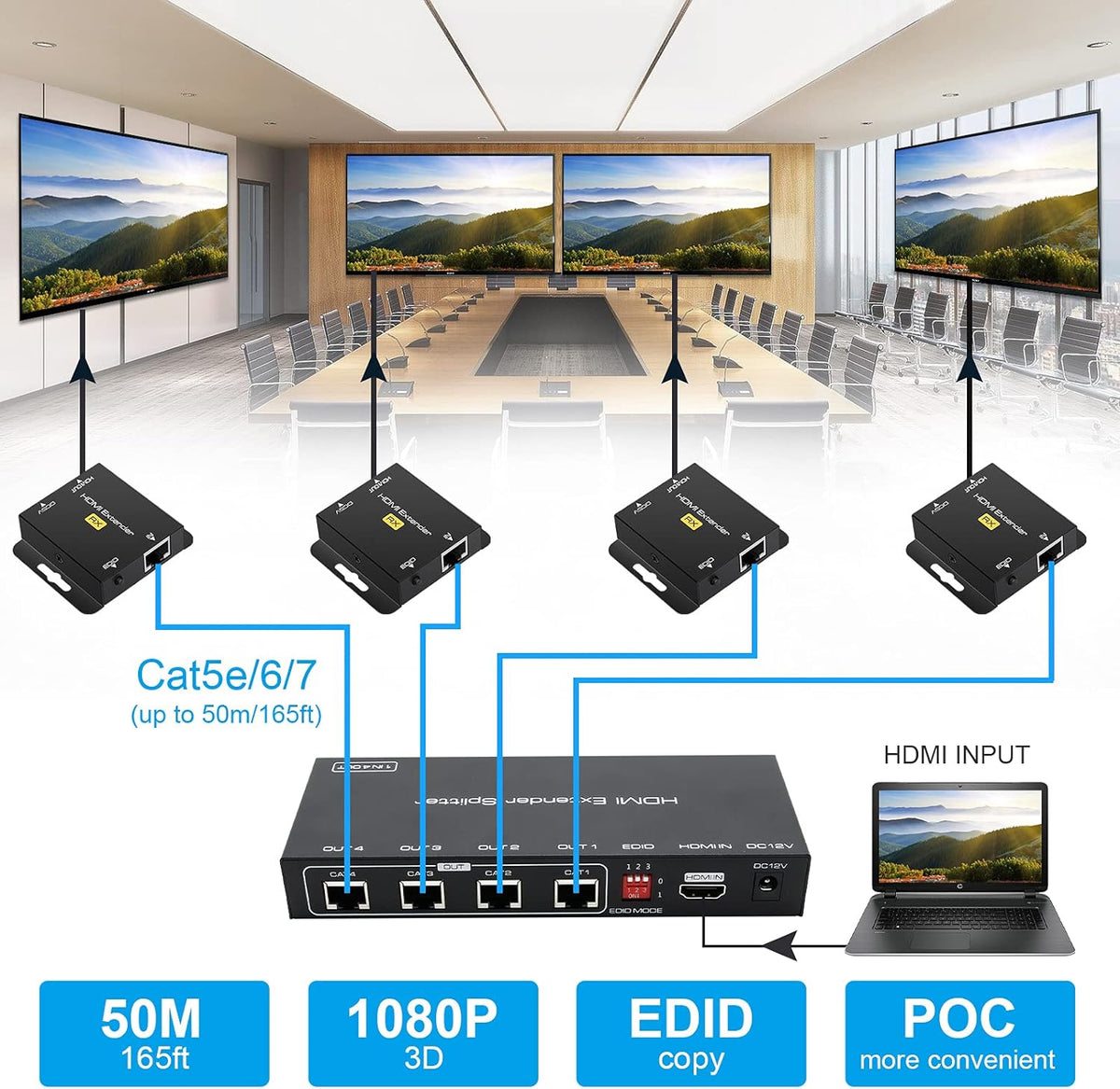

HDMI Extender splitter over CAT6 The HDMI extender splitter can split One HDMI signal into four identical Signals and run up to 165ft through the CAT6 cable, ideal as a remote audio/video extender.
Power on CAT6 Using POC technology, we only need to use the power supply at TX , and Rx can work through the network cable transmission power supply. Low to 5V voltage transmission, safe and reliable.(Notes:12V power must be connected to TX, otherwise the device will be damaged.)

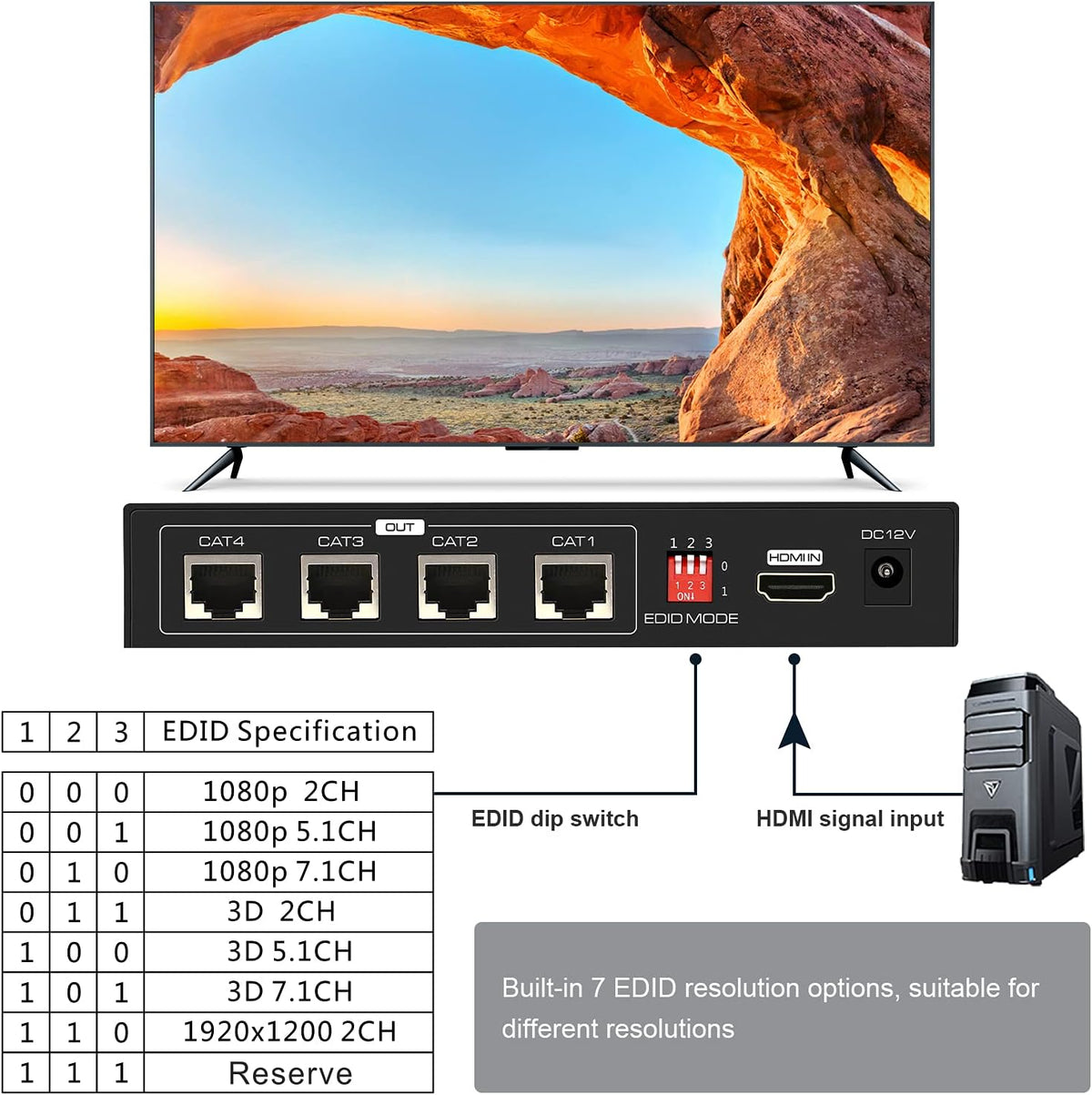

EDID Preset According to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, which can better match the signal source and display to get the most suitable video and audio signal.
No compression Transmission Support resolution up to 1920x1200@60Hz and 1080p@60Hz. Support audio format: PCM/DTS/ Dolby-AC3/ DSD. Suggested length: Cat6/7-165 ft, Cat5e-130 ft, Cat5-100 ft.
Auto EQ Chip built-in automatic algorithm, no need to manually adjust the receiver equalization settings to compatibility with cable transmission distance. It can make the PC, DVD player, PS4, PS5, TV box etc more stable. Can be widely used in education, digital signage, churches, classrooms, meeting rooms, projects, games, video conference, metro, multimedia home theater etc.

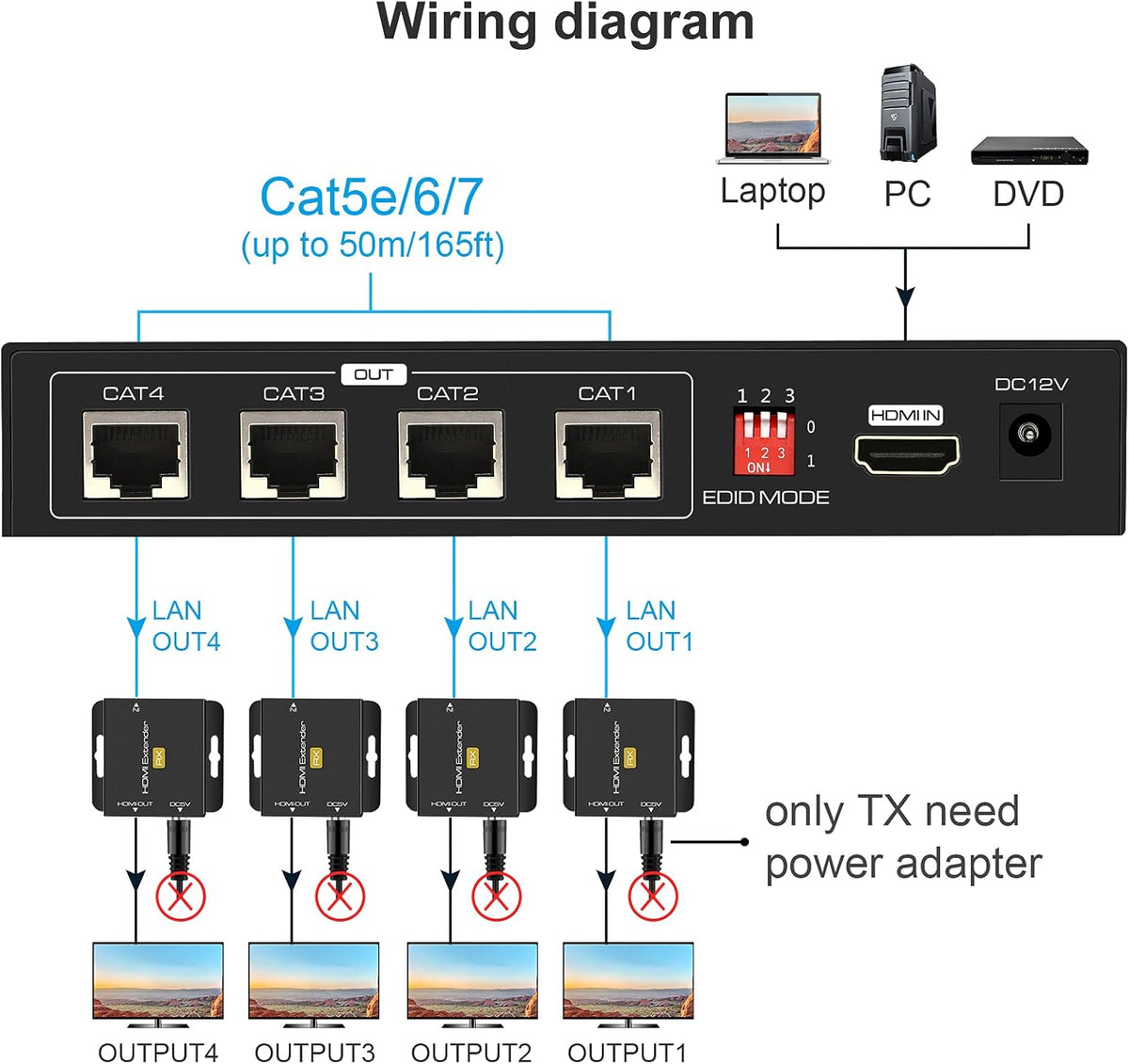

The HDMI extender splitter can split One HDMI signal into four identical Signals and run up to 165ft through the CAT6 cable. Notes: The HDMI extender must use oxygen free copper CAT5e/6/7 The extender transmits 1920x1200 60Hz HDMI signal, the longest distance can only reach 130ft. The extender transmits 1080P 60Hz HDMI signal over Cat5e , the longest distance can only reach 130ft. The extender transmits 1080P 60Hz HDMI signal over Cat5 , the longest distance can only reach 100ft. 12V power must be connected to TX, otherwise the device will be damaged. Instructions: 1.Connect one HDMI cable(AWG 26) up to 16ft between source device and TX Extender 2.Connect one HDMI cable(AWG 26) up to 16ft between display device and RX Extender 3.Connect single Cat6 cables up to 165ft instead of HDMI cable between TX and RX Extender 4.Connect 12V power supply,Using POC technology, only need to use the power supply at TX ,and Rx can work through the network cable transmission power supply. Low to 5V voltage transmission, safe and reliable. Specification: Support resolution:/Up to1920x1200 60Hz/3D/1080p/1080i/720p//576i/480p Support audio format: PCM/DTS/Dolby-AC3/DSD Max transmission bandwidth: 1.65Gbps Input/Output HDMI cable distance:16ft(5m) AWG26 HDMI standard cable Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V Output:DC12V Packing list: 1. HDMI TX x 1 2. HDMI RX x 4 3. 12V DC power adapter x 1 4. User's Manual x 1
